WELCOME TO SEAN BEVILLE'S AE SENIOR THESIS e-STUDIO
line decor

User Note: While great efforts have been taken to provide accurate and complete information on the pages of cpep, please be aware that the information contained herewith is considered a work-in-progress for this thesis project. Modifications and changes related to the original building designs and construction methodologies for this senior thesis project are solely the interpretation of Sean Beville. Changes and discrepancies in no way imply that the original design contained errors or was flawed. differing assumptions, code references, requirements, and methodologies have been incorporated into this thesis project; therefore, investigation results may vary from the original design.




TECHNICAL ASSIGNMENTS

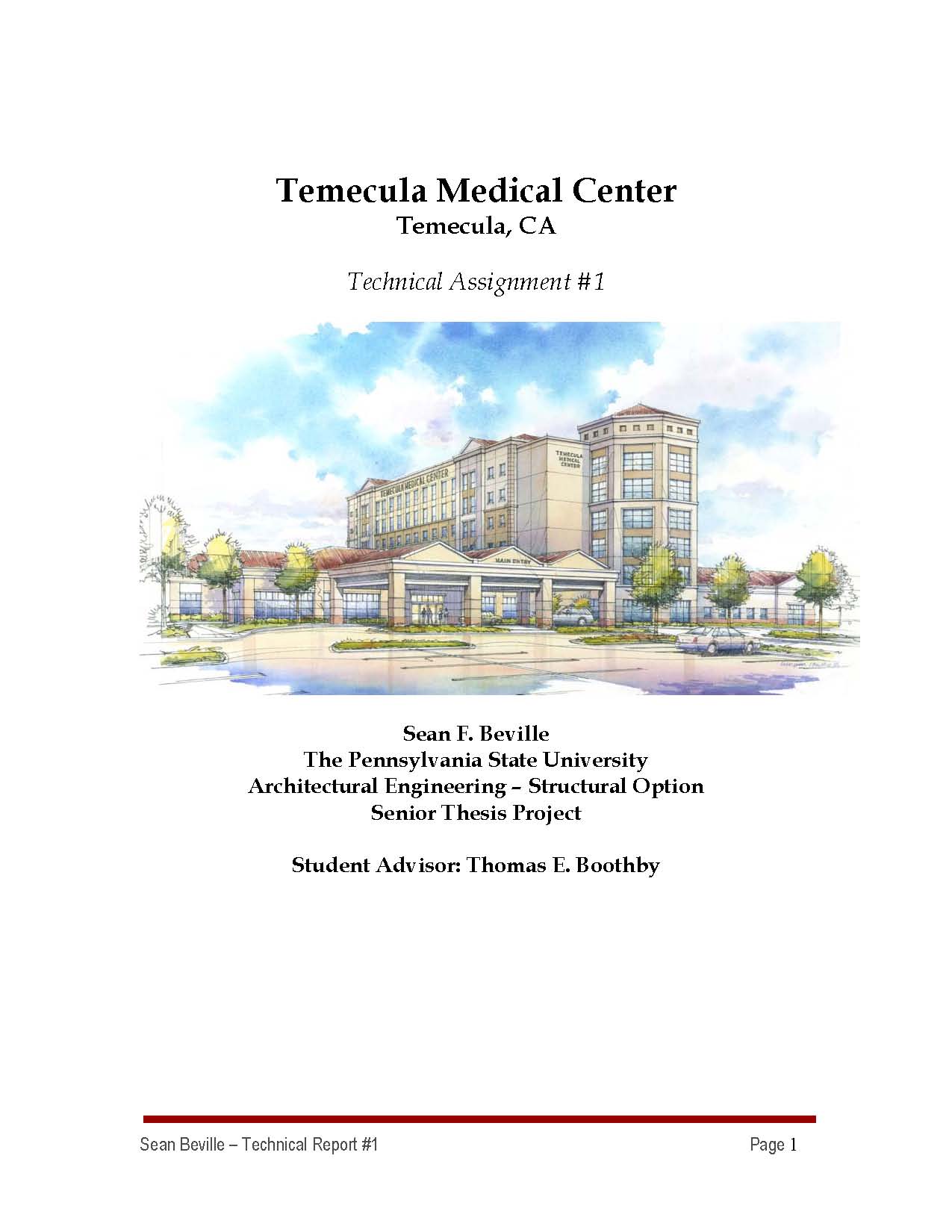

Technical Report 1



Tech Report 1 analyzes the existing structural system. Calculations of gravity loads as well as lateral loads (wind and seismic) were performed. Spot checks of structural members were also performed to gain a better understanding of the existing structural system.







Technical Report 2

Tech Report 2 is an analysis of alternative floor systems. Three alternative floor systems were analyzed and compared to the existing concrete flat plate system. The alternative systems include a two-way slab with beams, non-composite floor, and a composite steel and concrete system.









Technical Report 3

Tech Report 3 is a detailed analysis of the structural lateral system in the Temecula Medical Center. The hospital uses concrete shear walls to resist the heavy seismic lateral loads. ETABS was the main tool used to analyze the lateral system.
