Enclosure |
|
| |

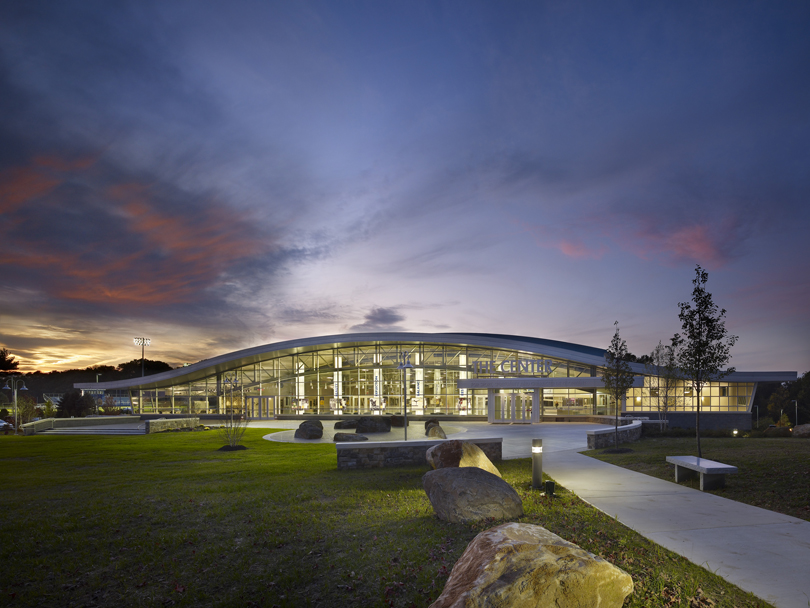

THE BUILDING FAÇADES: |
|
| |
The front façade consists of a one foot four inch brick veneer block wall with |
|
| |
two inch air space on a six inch metal studded drywall system with necessary vapor |
|
| |
barriers in place. Above the knee wall is a glazed aluminum curtain wall system. |
|
| |
|
|
| |
The typical exterior metal panel wall contruction consists of the following |
|
| |
from the inside out: 5/8” G.W.B., 6” MTL Stud Framing, 5/8” Dens Glas |
|
| |
Sheating, Vapor barrier(non-breathable) z-girt/z-clip, 2”rigid insulation, |
|
| |
& MTL Panel. |
|
| |
|
|
| |
The typical exterior veneer wall construction consists of the following from |
|
| |
the inside out: Solid surface interior sill, 8” CMU, Damproofing over exterior |
|
| |
face of CMU prior to installation of rigid insulation, 2” rigid insulation, 2” |
|
| |
cavity, cast stone window sill, 3” split face CMU. |
|
| |
|
|
| |
The Roofing material is a Carlisle SynTec THERMOPLASTIC POLYOLEFIN ROOFING |
|
| |
MEMBRANE. (a.k.a. TPO). This roof falls in the “Built-Up-Roof” category. A roof |
|
| |
section consists of the following: steel roof framing, 3" mtl decking, pressure |
|
| |
treaded wood blocking, 6" rigid insulation tapered 1" to drain, & tpo adhered |
|
| |
membrane roofing |
|
