Click images below to view second revision of final proposal | |||||||||||||||
This proposal revises the original by increaseing the details of what is being preposed. In addition breadth topic one was focused strictly on the replacement of the curtain wall system. | |||||||||||||||
2nd Revised Proposal | |||||||||||||||
Click image below to view first revision of final proposal | |||||||||||||||
This proposal revises the original by increaseing the details of what is being preposed in addition to making changes to the first and fourth proposed analysis. In addition breadth topic two was focused on the green roof analysis. | |||||||||||||||
1st Revised Proposal | |||||||||||||||
Click images below to view final proposal and breadth topics | |||||||||||||||
Breadth topics | |||||||||||||||
Final proposal | |||||||||||||||
|
|||||||||||||||
Analysis 1: Redesign of building facade | |||||||||||||||
The bayhealth medical center expansion’s façade is comprised of three different systems: metal panels, masonry brick, and a curtain wall system. Because each of the three types of wall systems has their own manufacture specified waterproofing system, a problem with getting the building water tight was encountered. The main problem found with the façade was the curtain wall system. | |||||||||||||||
Analysis 2: Addition of green roof system | |||||||||||||||
There were very few sustainable ideas implemented on the Bayhealth medical center expansion. Green roof technology is beginning to emerge in the construction industry today as a way to not only do something environmentally friendly to your building, but also as a cost savings to the owner. A green roof system is a great way to reduce storm water runoff, reduce the buildings heat island effect, and reduce mechanical loads. | |||||||||||||||
Analysis 3: Prefabrication | |||||||||||||||
Because of the extensive amount of MEP systems needed in a hospital, a lot of time and money is spent installing these systems. Since these systems are so important to the overall building, their installation is usually on the schedules critical path. Because cost and quality are paramount to the bayhealth medical center expansion owner, these systems must be watched over carefully. | |||||||||||||||
Analysis 4: BIM | |||||||||||||||
BIM seems to be one of the most talked about topics in the construction industry today. It is completely revolutionizing how construction projects are being done today. Using BIM can greatly reduce the time and money it takes to ensure that building systems can be installed without clashes, and reduce the number of change orders and field problems that occur due to clashes. | |||||||||||||||

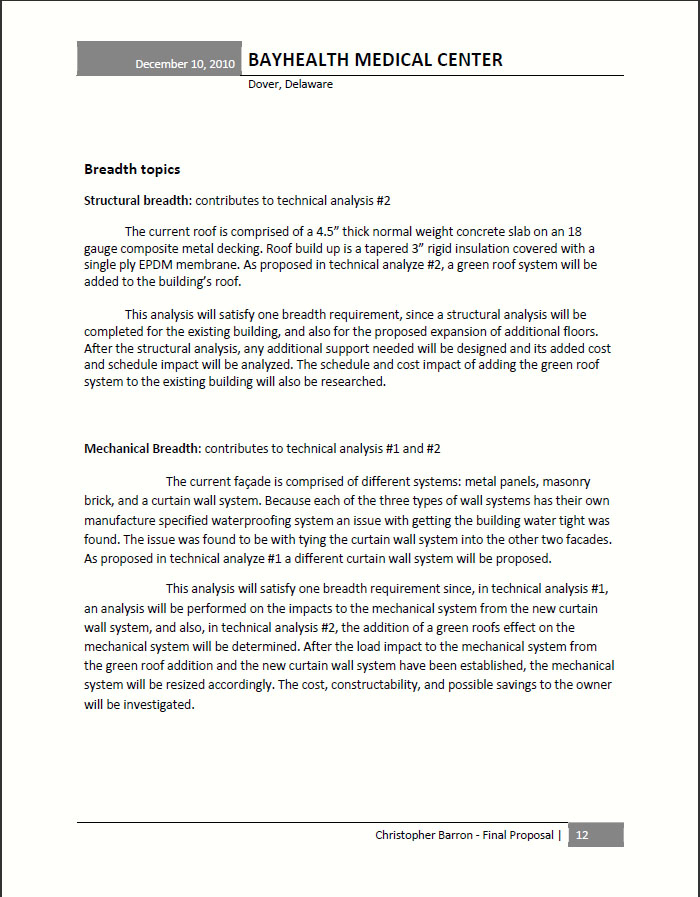

Structural breadth:Contributes to technical analysis #2 | |||||||||||||||
The current roof is comprised of a 4.5” thick normal weight concrete slab on an 18 gauge composite metal decking. Roof build up is a tapered 3” rigid insulation covered with a single ply EPDM membrane. As proposed in technical analyze #2, a green roof system will be added to the building’s roof. This analysis will satisfy one breadth requirement, since a structural analysis will be completed for the existing building, and also for the proposed expansion of additional floors. After the structural analysis, any additional support needed will be designed and its added cost and schedule impact will be analyzed. The schedule and cost impact of adding the green roof system to the existing building will also be researched. |
|||||||||||||||
Mechanical breadth: Contributes to technical analysis #1 and #2 | |||||||||||||||
