Cadell G. Calkins

Structural Option

Technical Reports


Technical Report 1

Technical Report 1 examines the existing structural system of Building A with a focus on loads and where they originate.  The report includes a check on the dead, live, and snow loads acting on the structure as well as the soil, seismic, wind loads acting laterally on the strucure.  Some gravity members were then checked to determine if the member was adequately sized.


For a PDF copy, please click the thumbnail at the right.






Technical Report 2

Technical Report 2 examines the existing floor system in comparison with 3 new floor systems to determine which ones are viable design options.  Because the Dormitory has 4 original floor systems in different areas, each floor system was compared at each location to determine the efficiency of using each system in different areas.


For a PDF copy, please click the thumbnail at the right.







Technical Report 3

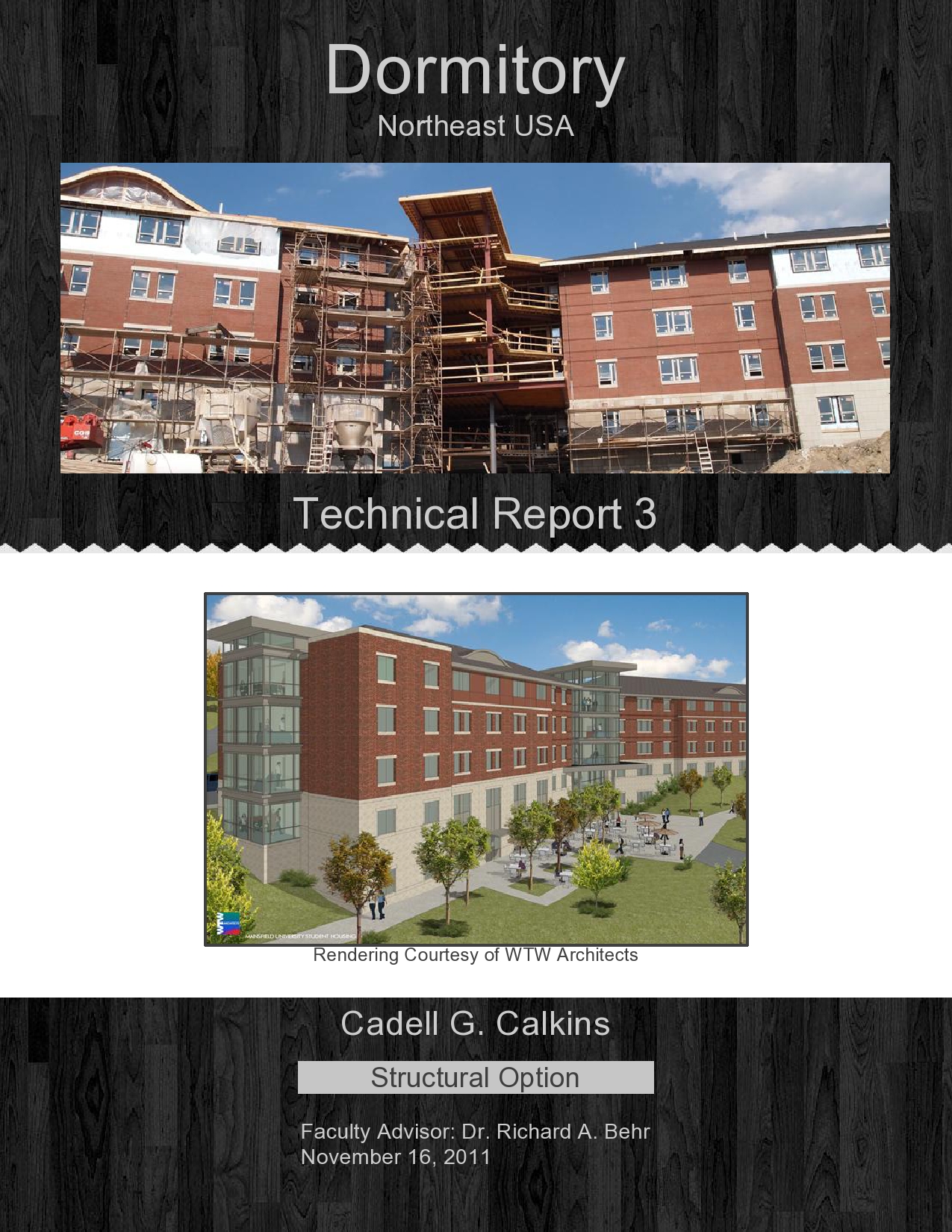

Technical Report 3 examines the adequacy of the lateral force resisting system of the building.  For Dormitory, GWB and OSB based shear walls were examined and checked for shear strength and deflection.  In addition, the flexible wood diaphragm was examined and the CMU shear walls were checked for strength.  Lastly, a computer model was developed to compare the results of the hand calculations for the GWB shear wall to a computer calculation.


For a PDF copy, please click the thumbnail at the right.
