Technical Assignments |
|
| |
____________________________________________________________ |
|
| |

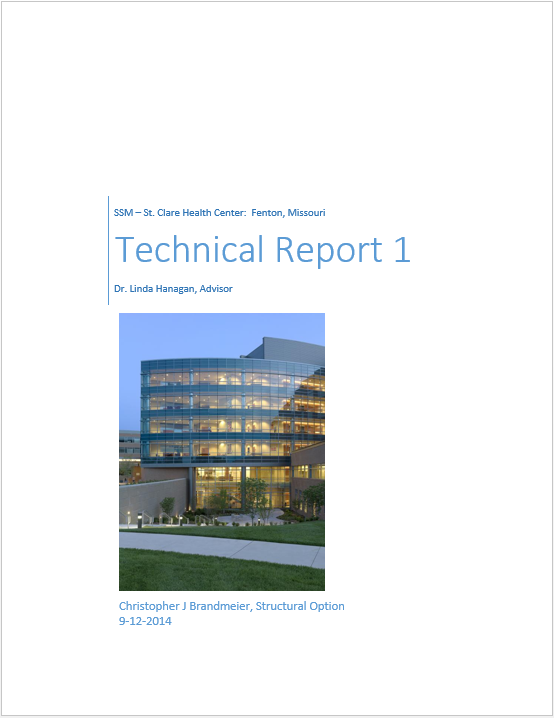

Technical Report I |
|
| |
This technical report provides a general overview of the existing conditions and structural systems of SSM St. Clare Health Center in Fenton, Missouri. Please note that the report presented below is a draft-in-progress and will continue to be updated throughout the semester. |
|
| |
 |
|
| |
____________________________________________________________________________ |
|
| |

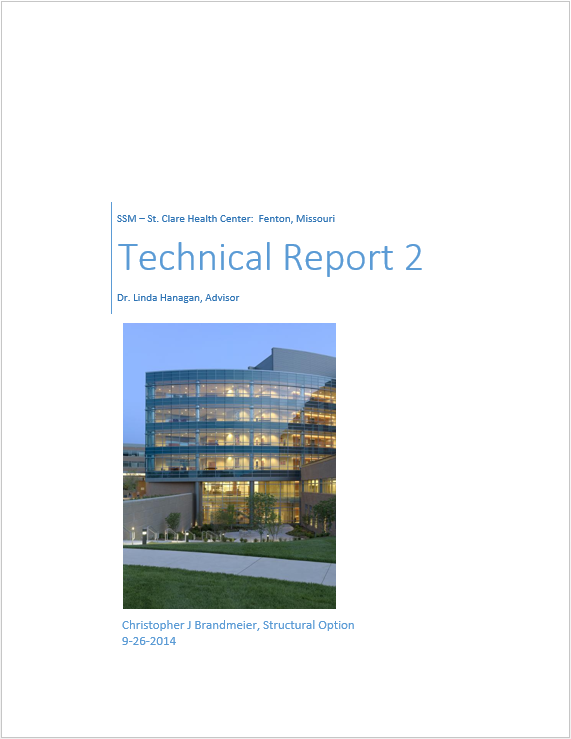

Technical Report II |
|
| |

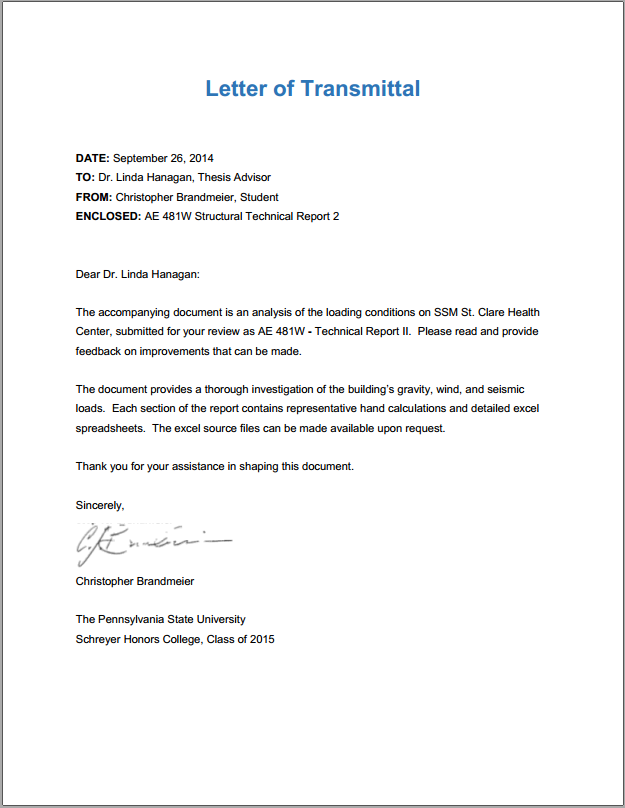

This second technical report is an analysis of the building loads (gravity, wind, and seismic) on SSM St. Clare Health Center. A letter of transmittal has been included below to briefly orient the reader to the document's context. |
|
| |
  |
|
| |
____________________________________________________________________________ |
|
| |

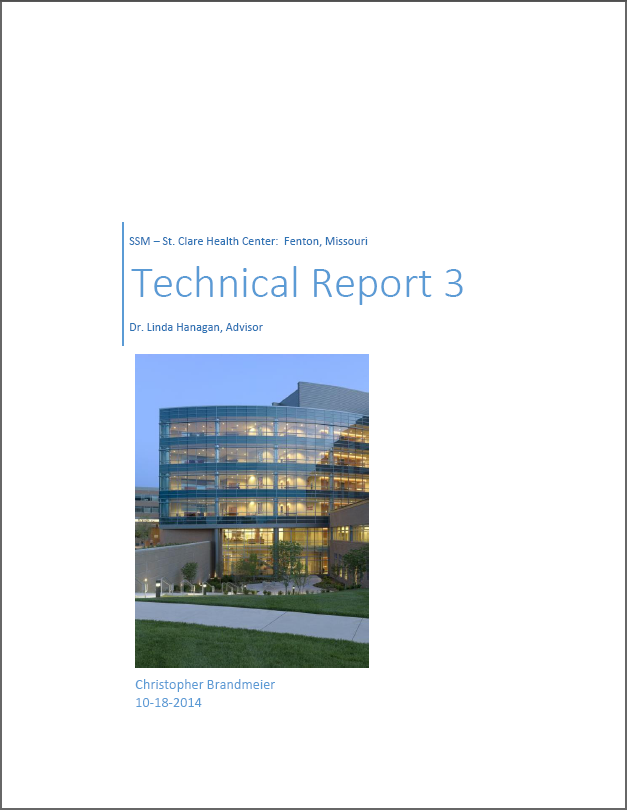

Technical Report III |
|
| |

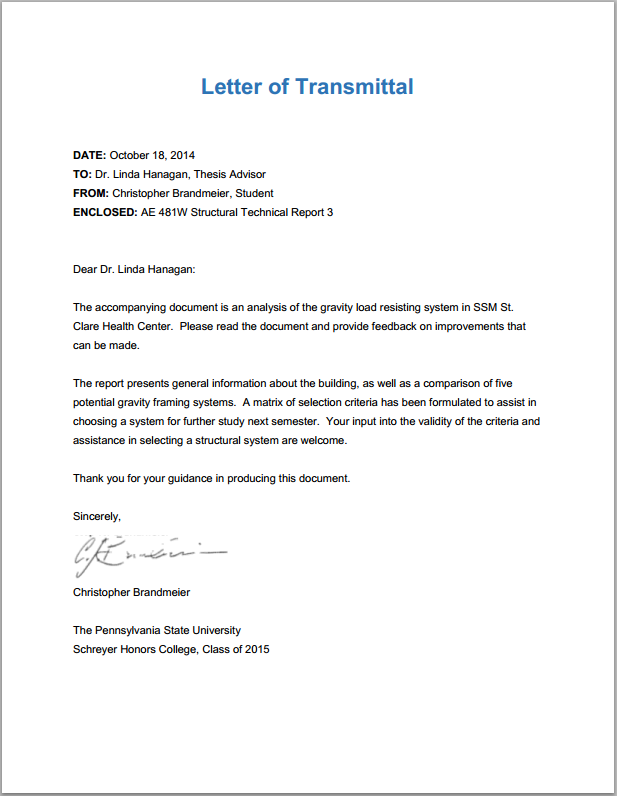

The third technical report is an investigation of various gravity systems and evaluation of their effectiveness based on criteria that the student develops. This report analysis the composite steel system of the original design and offers 4 alternative designs for consideration. |
|
| |
   |
|
| |
____________________________________________________________________________ |
|
| |
Technical Report IV |
|
| |

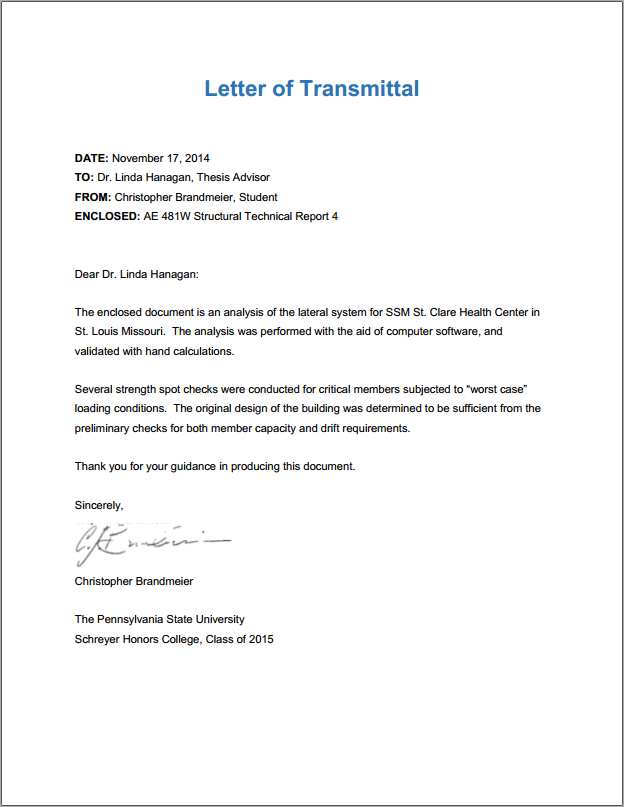

Technical report four is an analysis of the building's lateral force resisting systems. |
|
| |

|
|
| |
Note: While great efforts have been taken to provide accurate and complete information on the
pages of CPEP, please be aware that the information contained herewith is considered a work-in-progress for this thesis project. Modifications and changes related to the original building designs and
construction methodologies for this senior thesis project are solely the interpretation of Christopher
Brandmeier. Changes and discrepancies in no way imply that the original design contained errors or was
flawed. Differing assumptions, code references, requirements, and methodologies have been
incorporated into this thesis project; therefore, investigation results may vary from the original
design. |
|
| |
|
|
|
